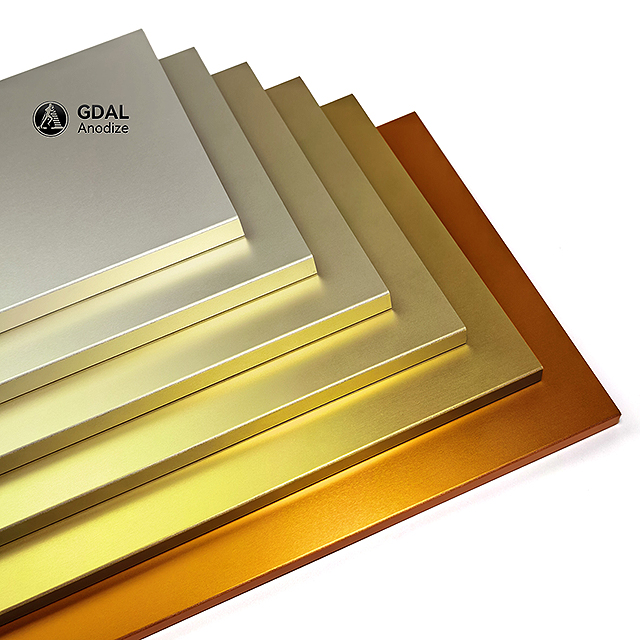

Industrial and architectural projects frequently require materials that deliver high strength-to-weight ratios alongside extreme surface durability, visual depth, and aesthetic consistency. Specifying engineers, architects, and procurement teams struggle to balance material weight, long-term corrosion resistance, and surface wear in high-traffic or harsh environmental applications without escalating costs. Utilizing an embossed anodized aluminum coil addresses these competing requirements by combining mechanical surface alteration (embossing) with electrochemical protection (anodizing) in a continuous, scalable format. We see this material solving complex engineering challenges across multiple sectors. It provides a reliable method to reduce gauge thickness while maintaining structural integrity. You get a surface that resists scratching, hides fingerprints, and withstands harsh weather. This guide breaks down the manufacturing process, pattern options, and technical specifications you need to successfully integrate this material into your next production run or architectural build.
Structural Efficiency: The embossing process increases the geometric rigidity of the aluminum without altering the base material thickness, allowing for lightweighting in structural applications.
Enhanced Durability: Continuous coil anodizing creates an aluminum oxide layer that is fully integrated with the substrate, preventing peeling or chipping common in painted alternatives.
Surface Utility & Character: Specific patterns, such as stucco, actively diffuse light to reduce glare, add distinct surface character, and effectively mask scratches, fingerprints, and minor surface imperfections.
Specification Criticality: Successful procurement requires aligning the anodic layer thickness (measured in mils or microns) and the embossing pattern depth with the specific environmental and forming requirements of the end product.
The Manufacturing Process of Embossed Anodized Aluminum Coil
Coil Preparation and Pre-Treatment
Continuous processing begins with uncoiling and leveling the raw metal. Heavy-duty levelers flatten the material, removing coil set and ensuring dimensional flatness before it enters the main processing line. Flatness prevents tracking issues during high-speed runs. Accumulator towers hold excess material, allowing the line to run continuously while operators stitch or weld new master coils to the end of the previous one.
Next, the metal undergoes rigorous chemical cleaning and etching. This pre-treatment phase dictates the quality of the final finish. A perfectly clean, chemically active surface ensures uniform anodic layer growth later in the electrochemical stages. The standard pre-treatment sequence includes:
Alkaline Wash: Heated sodium hydroxide baths strip away mill oils, residual oxides, and surface impurities left over from initial rolling.
Rinsing: High-pressure water sprays remove the alkaline solution to prevent cross-contamination.
Desmutting: An acidic bath removes any heavy metal residues (smut) left behind by the alkaline etch, leaving the aluminum surface highly reactive.
Final Rinse: Deionized water removes all remaining chemicals before the metal enters the embossing station.
The Precision Embossing Procedure
The mechanical embossing process involves passing the continuous web through matched, synchronized roller dies under extreme hydraulic pressure. These male and female rollers impress specific textures into the metal. The physics of this process produce raised or sunken designs into the substrate without changing the overall material thickness. Instead, the metal stretches and forms around the die geometry, altering its cross-sectional profile.
Tension control and gauge consistency dictate the success of this stage. Automated tensioning systems prevent web breaks or material warping during high-speed rolling. Operators monitor nip pressure to ensure the pattern depth remains uniform from the beginning of the master coil to the end. If the pressure drops, the pattern washes out. If the pressure spikes, the metal can tear or work-harden prematurely.
| Material Gauge (Inches) | Typical Roller Pressure (Tons) | Pattern Depth Tolerance |
| 0.010 - 0.024 | 50 - 75 | ± 0.001" |
| 0.025 - 0.063 | 75 - 150 | ± 0.002" |
| 0.064 - 0.125 | 150 - 300 | ± 0.003" |
The Continuous Anodizing Phase
Once embossed, the material enters the continuous anodizing phase. The line submerges the moving web in an electrolytic acid bath, usually a 15-20% sulfuric acid solution, while passing a high-amperage direct electric current through it. The aluminum acts as the anode. This electrochemical reaction converts the raw surface into a highly durable, porous aluminum oxide layer. Because this layer grows directly out of the base metal matrix, it cannot peel or flake off like applied coatings.
Following oxidation, the material undergoes a sealing process. The anodic layer consists of millions of microscopic hexagonal pores. Leaving these pores open invites corrosion and staining. Hydrothermal sealing with boiling deionized water or chemical sealing using nickel acetate at 190°F closes these pores. The sealing step hydrates the aluminum oxide, causing it to swell and lock the surface tight. This maximizes long-term corrosion resistance by preventing environmental contaminants from reaching the raw aluminum below.
Post-Processing: Slitting and Cut-to-Length Integration
Continuous coil processing lines handle secondary sizing requirements immediately following the anodizing phase. Master coils often weigh up to 10,000 pounds and measure 48 to 60 inches wide, requiring further reduction for specific manufacturing feeds. The slitting process divides these wide master coils into narrower, custom-width slits using precision rotary knives. Operators set the knife clearances based on the material gauge to minimize edge burrs.
For applications requiring flat sheets rather than continuous feeds, cut-to-length operations take over. The slit coils run through a final precision leveler to remove any induced bow or camber. High-speed shears then transform the continuous web into ready-to-manufacture flat sheets. These secondary operations ensure clean edges, precise dimensional tolerances, and immediate readiness for final fabrication on the shop floor.
Standard and Custom Embossing Patterns
Stucco Embossed
The stucco pattern features a pebbled, non-directional texture closely resembling traditional plaster. This specific geometry offers exceptional light diffusion, significantly reducing surface glare in brightly lit environments. Functionally, the stucco texture increases the overall surface area by roughly 5% to 10%, which improves thermal efficiency in heat transfer applications. It also excels at hiding daily surface wear, scratches, and fingerprints. Primary use cases include HVAC ducting, commercial refrigeration interior liners, and architectural roofing panels where aesthetic consistency and long-term durability matter most.
Diamond, Ribbed, and Tread Patterns
Unlike stucco, diamond, ribbed, and tread patterns utilize directional, high-relief geometries. These aggressive textures provide distinct mechanical advantages. They increase structural rigidity across specific axes, allowing the material to bear heavier loads without deflecting. The raised profiles also enhance foot traction and promote aggressive fluid shedding in wet or oily environments. You will typically specify these robust patterns for mass transit transportation flooring, industrial kickplates, heavy-duty appliance housing, and commercial loading ramps. Alloys like 3003 and 5052 are frequently chosen for these patterns due to their excellent formability and baseline strength.
Custom Tooling vs. Standard Rollers
Specifying custom patterns allows manufacturers to integrate brand identity or meet unique functional requirements directly into the metal surface. However, this approach involves distinct trade-offs. Custom tooling requires significant upfront capital to design, CNC machine, and test the synchronized roller dies. Standard patterns offer immediate availability and bypass these initial tooling expenses entirely.
Lead time considerations also play a major role in this decision. Custom roller fabrication can add 8 to 12 weeks to a project timeline. Processors usually demand higher minimum order quantities (MOQs) to justify the extensive line setup time required to swap out heavy roller sets and calibrate the nip pressure for a brand new profile.
Advanced Aesthetic Treatments: Visual Depth and Embedded Graphics
The porous nature of unsealed anodized aluminum allows for advanced aesthetic customization before the final sealing stage. Processors can integrate embedded images, custom organic dyes, or multi-color graphics directly into the open pores of the anodic layer. The dye penetrates deep into the microscopic hexagonal structures.
Once sealed, these graphics become permanently locked beneath the hard, sapphire-like exterior. They remain impervious to scratching, chemical cleaners, or UV fading. Combining these embedded graphics with precision embossing creates unparalleled visual depth. This dual-treatment approach delivers enhanced product appeal for high-end consumer goods, luxury appliance fascias, and bespoke architectural installations.

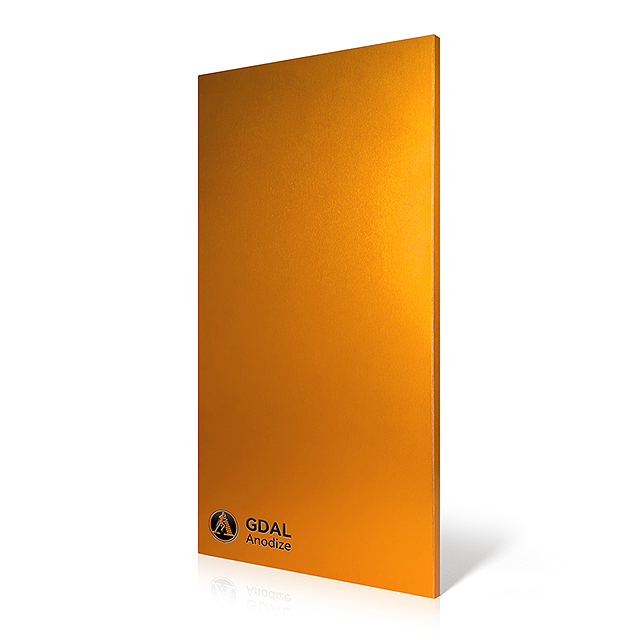

![embossed anodized aluminum coil]()
Core Industrial and Architectural Applications
Construction and Architectural Cladding
Exterior building materials face strict success criteria: extreme weather resistance, long-term UV stability, visual depth, and aesthetic consistency across massive facades. Embossed anodized materials meet these criteria effectively. The integrated oxide layer specifically prevents filiform corrosion, a common failure mode in coastal environments where salt spray degrades standard painted coatings. The textured surface breaks up flat reflections, enhancing the architectural surface character and masking minor installation handling marks that often plague flat metal panels. Wind load deflection is also reduced due to the geometric stiffening provided by the embossing.
Appliance Manufacturing and HVAC
Appliance and HVAC components demand high thermal conductivity, strict moisture resistance, and hygienic, easy-to-clean surfaces. The stucco pattern plays a major role here. By increasing the effective surface area of the metal, the embossed texture accelerates heat dissipation in commercial refrigeration evaporator coils and HVAC heat exchangers. The anodic layer provides a sanitary, non-porous finish that resists mold growth. It withstands harsh industrial cleaning agents without degrading or discoloring over time, making it ideal for food-grade environments.
Transportation and Automotive
Automotive and mass transit engineering prioritizes lightweighting for fuel and energy efficiency, alongside vibration dampening and impact resistance. The increased geometric rigidity of embossed patterns allows manufacturers to down-gauge the base metal thickness. You can achieve the exact same structural integrity using thinner, lighter stock. For example, replacing a 0.050" flat sheet with a 0.040" embossed sheet yields a 20% weight reduction. This weight reduction directly translates to improved vehicle range and payload capacity. The textured surface naturally dampens acoustic vibrations in interior cabin paneling, improving passenger comfort during transit.
Technical Evaluation: Is Embossed Anodized Aluminum Right for Your Project?
Performance-to-Weight Ratio and Structural Rigidity
Evaluating structural materials requires comparing strength against mass. Compared to heavier alternatives like stainless steel, textured aluminum offers massive weight savings while maintaining comparable surface hardness. Against weaker alternatives like flat mill-finish aluminum, the embossed profile provides superior stiffness and deflection resistance.
| Material Type | Density (lbs/in⊃3;) | Surface Hardness | Structural Rigidity (Deflection Resistance) |
| Flat Mill-Finish Aluminum (3003) | 0.099 | Low (Prone to scratching) | Baseline |
| Embossed Anodized Aluminum | 0.099 | High (Sapphire-like oxide layer) | High (Increased by geometric profile) |
| Stainless Steel (304) | 0.290 | High | Very High |
When calculating potential weight savings, engineers can often down-gauge the material by 10% to 20% due to the structural benefits of embossing. This reduction significantly lowers overall assembly mass without compromising the physical integrity of the final product. You save on material costs and shipping weight simultaneously.
Corrosion Resistance and Anodic Layer Thickness
Anodizing classes dictate the material's environmental suitability. Mapping the correct anodic layer thickness to your expected environmental outcomes prevents premature material failure and ensures structural longevity.
| Anodizing Class | Minimum Thickness (Microns) | Minimum Thickness (Mils) | Primary Application Environment |
| Class I (Architectural) | 18 | 0.7 | Exterior, coastal, high-traffic marine environments. |
| Class II (Architectural) | 10 | 0.4 | Exterior mild climates, interior commercial spaces. |
| Decorative / Protective | 5 | 0.2 | Interior appliance housings, consumer electronics. |
Class I architectural anodizing withstands harsh outdoor exposures, including coastal and marine environments where salt spray is prevalent. Class II anodizing suits interior decorative use, appliance housings, or exterior applications in mild climates.
Aesthetic Longevity vs. Surface Wear
Lifecycle value heavily favors anodizing over painted or powder-coated coil. Paint sits on top of the metal as a distinct layer. The anodic layer is molecularly bonded to the substrate. Coating delamination, blistering, and peeling are physically impossible with an anodic layer. The textured surface further extends aesthetic longevity by physically hiding the minor scuffs, dents, and abrasions that would ruin a flat, painted finish. Anodized surfaces also register much higher on the pencil hardness scale compared to PVDF or polyester paints, offering superior abrasion resistance in high-contact areas.
Sourcing and Implementation Risks
Batch-to-Batch Color Consistency
Color variation remains a primary risk when sourcing this material. Differences in alloy composition, temper, and minor fluctuations in anodizing bath chemistry can cause slight color shifts between production runs. Silicon and iron content in the raw aluminum heavily influence the final anodic color. To mitigate this, specify tight alloy tolerances when ordering raw metal. Always request limit samples that define the acceptable light-to-dark range before full production begins. Working with single-source continuous coil processors minimizes variables, ensuring tighter control over the final chemical finish and maintaining visual uniformity across large architectural spans.
Mitigating Micro-Cracking During Secondary Forming
The anodic layer is essentially aluminum oxide, which is significantly harder and more brittle than the underlying base metal. If you bend or stamp the material aggressively after processing, this brittle layer can suffer from micro-cracking, often called crazing. Crazing exposes the raw aluminum beneath, compromising corrosion resistance.
To mitigate this risk, specify appropriate, generous bend radii in your part designs. Utilizing softer base alloys, such as those in the 5000 series (like 5005), allows the substrate to yield more predictably during forming. If your design requires aggressive post-forming, opt for thinner anodic coatings that possess slightly more flexibility to accommodate the mechanical stress.
Coil Yield, Scrap Rates, and MOQs
Purchasing continuous coil involves specific supply chain realities that impact your true material utilization. Edge trimming during the slitting phase generates unavoidable scrap. Processors typically require a half-inch to one-inch trim on both sides to remove edge burrs and ensure exact width tolerances. Additionally, the unanodized leader and trailer sections of the master coil must be discarded. Processors enforce minimum order quantities to justify extensive line setup times and chemical bath preparations. You must factor these scrap rates and MOQs into your initial material yield calculations to avoid unexpected budget overruns during high-volume production runs.
Conclusion
Request physical limit samples from your processor to establish acceptable color and texture variations before signing off on large orders.
Review mill test reports (MTRs) thoroughly to verify strict alloy consistency, which dictates uniform anodizing results.
Consult directly with coil processors regarding your specific bend radii limitations and their in-house slitting capabilities to prevent post-forming micro-cracking.
Calculate true yield costs by factoring in edge trim scrap and leader/trailer waste associated with continuous coil runs.
FAQ
Q: What is the difference between mill finish and embossed anodized aluminum coil?
A: Mill finish is the raw, untreated state of aluminum directly from the rolling mill, offering minimal protection and a plain appearance. Embossed anodized aluminum has undergone mechanical texturing for added rigidity and an electrochemical process that builds a hard, protective oxide layer, drastically improving corrosion resistance and visual appeal.
Q: Does the embossing process change the thickness of the aluminum sheet?
A: No, the mechanical embossing process does not alter the overall base material thickness. High-pressure roller dies stretch and form the metal into raised or sunken geometric patterns. This alters the material's profile and increases structural rigidity without adding mass or changing the original gauge.
Q: Can you form, bend, or stamp embossed anodized aluminum after it has been processed?
A: Yes, but with caution. The anodic oxide layer is harder and more brittle than the base metal. Aggressive bending or stamping can cause micro-cracking (crazing) in the finish. To prevent this, engineers must specify generous bend radii, use softer alloys, or apply thinner anodic coatings for heavily formed parts.
Q: How does the stucco pattern improve the performance of anodized aluminum?
A: The stucco pattern increases the overall surface area of the metal, which enhances thermal conductivity and heat dissipation in HVAC and refrigeration applications. Additionally, its non-directional, pebbled texture actively diffuses harsh light to reduce glare and effectively masks daily wear, scratches, and fingerprints.
Q: Can custom graphics or images be embedded into an embossed anodized surface?
A: Yes. Before the final sealing stage, the anodic layer is highly porous. Manufacturers can introduce custom dyes, multi-color graphics, or embedded images directly into these open pores. Once sealed, the graphics are permanently locked beneath the hard oxide surface, rendering them immune to scratching or fading.
Q: What is the typical lifespan of the anodic coating on embossed coils?
A: The lifespan depends on the coating thickness and environmental exposure. A Class I architectural anodic coating can easily last several decades even in harsh exterior or coastal environments without degrading. Because the layer is integrated into the metal matrix, it will never peel, blister, or flake over time.
